If an electric field is incident normally at the boundary between two media, \(E\) is larger in the medium with the smaller permittivity, whereas \(D\) is continuous. Likewise, if a magnetic field is incident normally at the boundary between two media, \(H\) is smaller in the medium with the higher permeability, whereas \(B\) is continuous.
That is:
\(D\)perp and \(B\)perp are continuous across a boundary.
\(E\)perp is inversely proportional to \( \epsilon\).
\(H\)perp is inversely proportional to \(\mu\).
See the drawing below.
For fields parallel to a boundary, however, the situation is:
\(E\)tang and \(H\)tang are continuous across a boundary.
\(D\)tang is proportional to \(\epsilon\).
\(B\)tang is proportional to \(\mu\).

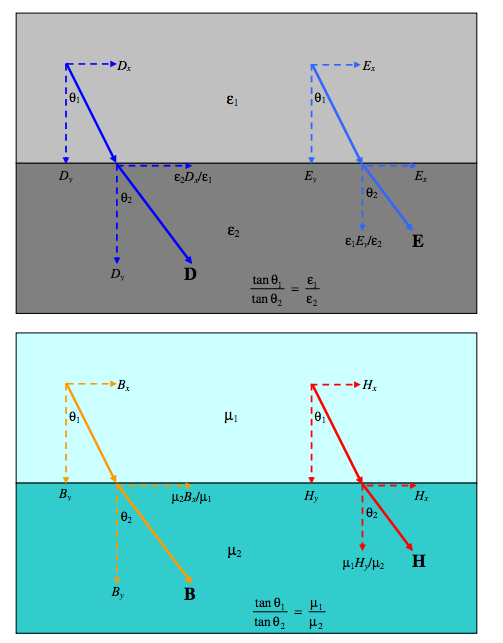

These things are assumed known from courses in electromagnetism. It may be asked what happens if a field is neither perpendicular to nor tangential to a boundary. We do not especially need to know that in discussing reflection of light at a boundary, because we shall be resolving any fields into their perpendicular and tangential components, but it is a reasonable question to ask, so for completeness the answers are given in the drawings below.
