3.5: Electric Potential

Learning Objectives

By the end of this section, you will be able to:

• Define electric potential, voltage, and potential difference.
• Calculate electric potential and potential difference from potential energy.
• Define the electron-volt.
• Describe systems in which the electron-volt is a useful unit.
• Apply conservation of energy to systems with electric charges.

Recall that earlier we defined electric field to be a quantity independent of the test charge in a given system, which would nonetheless allow us to calculate the force that would result on an arbitrary test charge. (The default assumption in the absence of other information is that the test charge is positive.) We briefly defined a field for gravity, but gravity is always attractive, whereas the electric force can be either attractive or repulsive. Therefore, although potential energy is perfectly adequate in a gravitational system, it is convenient to define a quantity that allows us to calculate the work on a charge independent of the magnitude of the charge. Calculating the work directly may be difficult, since \(W = \vec{F} \cdot \vec{d}\) and the direction and magnitude of \(\vec{F}\) can be complex for multiple charges, for odd-shaped objects, and along arbitrary paths. But we do know that because \(\vec{F}=q\vec{E}\), the work, and hence \(\Delta U\) is proportional to the test charge \(q\). To have a physical quantity that is independent of test charge, we define electric potential \(V\) (or simply potential, since electric is understood) to be the potential energy per unit charge:

Electric Potential

The electric potential energy per unit charge is

\[V = \dfrac{U}{q}. \label{eq-1}\]

Since the potential energy \(U\) is proportional to the test charge \(q\), the dependence on \(q\) cancels. Thus, \(V\) does not depend on \(q\). The change in potential energy \(\Delta U\) is crucial, so we are concerned with the difference in potential or potential difference \(\Delta V\) between two points, where

\[ \Delta V = V_B - V_A = \dfrac{\Delta U}{q} \]

Electric Potential Difference

The electric potential difference between points \(A\) and \(B\), \(V_B - V_A\) is defined to be the change in potential energy of a charge \(q\) moved from \(A\) to \(B\), divided by the charge. Units of potential difference are joules per coulomb, given the name volt (V) after Alessandro Volta.

\[1 \, \mathrm{V} = 1 \, \mathrm{J/C} \label{eq0}\]

The familiar term voltage is the common name for electric potential difference. Keep in mind that whenever a voltage is quoted, it is understood to be the potential difference between two points. For example, every battery has two terminals, and its voltage is the potential difference between them. More fundamentally, the point you choose to be zero volts is arbitrary. This is analogous to the fact that gravitational potential energy has an arbitrary zero, such as sea level or perhaps a lecture hall floor. It is worthwhile to emphasize the distinction between potential difference and electrical potential energy.

Potential Difference and Electrical Potential Energy

The relationship between potential difference (or voltage) and electrical potential energy is given by

\[\Delta V = \dfrac{\Delta U}{q} \label{eq1}\]

or

\[ \Delta U = q \Delta V. \label{eq2}\]

Voltage is not the same as energy. Voltage is the energy per unit charge. Thus, a motorcycle battery and a car battery can both have the same voltage (more precisely, the same potential difference between battery terminals), yet one stores much more energy than the other because \(\Delta U = q\Delta V\). The car battery can move more charge than the motorcycle battery, although both are 12-V batteries.

Example \(\PageIndex{1}\): Calculating Energy

You have a 12.0-V motorcycle battery that can move 5000 C of charge, and a 12.0-V car battery that can move 60,000 C of charge. How much energy does each deliver? (Assume that the numerical value of each charge is accurate to three significant figures.)

Solution

PLAN

To say we have a 12.0-V battery means that its terminals have a 12.0-V potential difference. When such a battery moves charge, it puts the charge through a potential difference of 12.0 V, and the charge is given a change in potential energy equal to \(\Delta U = q\Delta V\). To find the energy output, we multiply the charge moved by the potential difference.  Model the charges as point charges.

CALCULATE

For the motorcycle battery, \(q = 5000 \, \mathrm{C}\) and \(\Delta V = 12.0 \, \mathrm{V}\). The total energy delivered by the motorcycle battery is

\[\Delta U_{cycle} = (5000 \, \mathrm{C})(12.0 \, \mathrm{V}) = (5000 \, \mathrm{C})(12.0 \, \mathrm{J/C}) = 6.00 \times 10^4 \, \mathrm{J}. \nonumber\]

Similarly, for the car battery, \(q = 60,000 \, \mathrm{C}\) and

\[\Delta U_{car} = (60,000 \, \mathrm{C})(12.0 \, \mathrm{V}) = 7.20 \times 10^5 \, \mathrm{J}. \nonumber\]

CHECK

Voltage and energy are related, but they are not the same thing. The voltages of the batteries are identical, but the energy supplied by each is quite different. A car battery has a much larger engine to start than a motorcycle. Note also that as a battery is discharged, some of its energy is used internally and its terminal voltage drops, such as when headlights dim because of a depleted car battery. The energy supplied by the battery is still calculated as in this example, but not all of the energy is available for external use.

Exercise \(\PageIndex{1}\)

How much energy does a 1.5-V AAA battery have that can move 100 C?

Answer

\(\Delta U = q\Delta V = (100 \, \mathrm{C})(1.5 \, \mathrm{V}) = 150 \, \mathrm{J}\)

Note that the energies calculated in the previous example are absolute values. The change in potential energy for the battery is negative, since it loses energy. These batteries, like many electrical systems, actually move negative charge—electrons in particular. The batteries repel electrons from their negative terminals (\(A\)) through whatever circuitry is involved and attract them to their positive terminals (\(B\)), as shown in Figure \(\PageIndex{1}\). The change in potential is \(\Delta V = V_B - V_A = +12 \, V\) and the charge \(q\) is negative, so that \(\Delta U = q \Delta V\) is negative, meaning the potential energy of the battery has decreased when \(q\) has moved from \(A\) to \(B\).

Figure \(\PageIndex{1}\): A battery moves negative charge from its negative terminal through a headlight to its positive terminal. Appropriate combinations of chemicals in the battery separate charges so that the negative terminal has an excess of negative charge, which is repelled by it and attracted to the excess positive charge on the other terminal. In terms of potential, the positive terminal is at a higher voltage than the negative terminal. Inside the battery, both positive and negative charges move.

Example \(\PageIndex{2}\): How Many Electrons Move through a Headlight Each Second?

When a 12.0-V car battery powers a single 30.0-W headlight, how many electrons pass through it each second?

Solution

PLAN

To find the number of electrons, we must first find the charge that moves in 1.00 s. The charge moved is related to voltage and energy through the equations \(\Delta U = q \Delta V\). A 30.0-W lamp uses 30.0 joules per second. Since the battery loses energy, we have \(\Delta U = - 30 \, \mathrm{J}\) and, since the electrons are going from the negative terminal to the positive, we see that \(\Delta V = +12.0 \, \mathrm{V}\).

CALCULATE

To find the charge \(q\) moved, we solve the equation \(\Delta U = q\Delta V\):

\[q = \dfrac{\Delta U}{\Delta V}.\]

Entering the values for \(\Delta U\) and \(\Delta V\), we get

\[q = \dfrac{-30.0 \, \mathrm{J}}{+12.0 \, \mathrm{V}} = \dfrac{-30.0 \, \mathrm{J}}{+12.0 \, \mathrm{J/C}} = -2.50 \, \mathrm{C}.\]

The number of electrons \(n_e\) is the total charge divided by the charge per electron. That is,

\[n_e = \dfrac{-2.50 \, \mathrm{C}}{-1.60 \times 10^{-19} \mathrm{C}/e^-} = 1.56 \times 10^{19} \,\mathrm{electrons}.\]

CHECK

This is a very large number. It is no wonder that we do not ordinarily observe individual electrons with so many being present in ordinary systems. In fact, electricity had been in use for many decades before it was determined that the moving charges in many circumstances were negative. Positive charge moving in the opposite direction of negative charge often produces identical effects; this makes it difficult to determine which is moving or whether both are moving.

Exercise \(\PageIndex{2}\)

How many electrons would go through a 24.0-W lamp?

Answer

\(-2.00 \, \mathrm{C}, \, n_e = 1.25 \times 10^{19} \,\mathrm{electrons}\)

The Electron-Volt

The energy per electron is very small in macroscopic situations like that in the previous example—a tiny fraction of a joule. But on a submicroscopic scale, such energy per particle (electron, proton, or ion) can be of great importance. For example, even a tiny fraction of a joule can be great enough for these particles to destroy organic molecules and harm living tissue. The particle may do its damage by direct collision, or it may create harmful X-rays, which can also inflict damage. It is useful to have an energy unit related to submicroscopic effects.

Figure \(\PageIndex{2}\) shows a situation related to the definition of such an energy unit. An electron is accelerated between two charged metal plates, as it might be in an old-model television tube or oscilloscope. The electron gains kinetic energy that is later converted into another form—light in the television tube, for example. (Note that in terms of energy, “downhill” for the electron is “uphill” for a positive charge.) Since energy is related to voltage by \(\Delta U = q\Delta V\), we can think of the joule as a coulomb-volt.

Figure \(\PageIndex{2}\): A typical electron gun accelerates electrons using a potential difference between two separated metal plates. By conservation of energy, the kinetic energy has to equal the change in potential energy, so \(KE = qV\). The energy of the electron in electron-volts is numerically the same as the voltage between the plates. For example, a 5000-V potential difference produces 5000-eV electrons. The conceptual construct, namely two parallel plates with a hole in one, is shown in (a), while a real electron gun is shown in (b).

The Electron-Volt Unit

On the submicroscopic scale, it is more convenient to define an energy unit called the electron-volt (eV), which is the energy given to a fundamental charge accelerated through a potential difference of 1 V. In equation form,

\[1 \, \mathrm{eV} = (1.60 \times 10^{-19} \mathrm{C})(1 \, \mathrm{V}) = (1.60 \times 10^{-19} \mathrm{C})(1 \, \mathrm{J/C}) = 1.60 \times 10^{-19} \, \mathrm{J}.\]

An electron accelerated through a potential difference of 1 V is given an energy of 1 eV. It follows that an electron accelerated through 50 V gains 50 eV. A potential difference of 100,000 V (100 kV) gives an electron an energy of 100,000 eV (100 keV), and so on. Similarly, an ion with a double positive charge accelerated through 100 V gains 200 eV of energy. These simple relationships between accelerating voltage and particle charges make the electron-volt a simple and convenient energy unit in such circumstances.

The electron-volt is commonly employed in submicroscopic processes—chemical valence energies and molecular and nuclear binding energies are among the quantities often expressed in electron-volts. For example, about 5 eV of energy is required to break up certain organic molecules. If a proton is accelerated from rest through a potential difference of 30 kV, it acquires an energy of 30 keV (30,000 eV) and can break up as many as 6000 of these molecules \((30,000 \,\mathrm{eV} \div  5 \, \mathrm{eV \, per \, molecule} = 6000 \, \mathrm{molecules})\). Nuclear decay energies are on the order of 1 MeV (1,000,000 eV) per event and can thus produce significant biological damage.

Visualizing Electric Potential

A variety of methods exist for visualizing the values of the electric potential in a system.  The task of visualizing electric potential is somewhat easier than visualizing the electric field because the electric potential is a scalar field rather than a vector field, so that you only need to represent a number at each point in space rather than a vector.  We will return to the case of the large oppositely-charged parallel plates as a case study showing how potential can be visualized in a potential graph and a contour map.

Example \(\PageIndex{3}\)

Consider the case of two large oppositely-charged parallel plates, as described previously in the section Electric Potential Energy.

A. Suppose that a positive test charge \(q\) is placed between the plates at a distance \(x\) from the negatively-charged plate.  Plot the (a) electric potential energy and (b) electric potential as a function of \(x\).
B. Suppose \(E = 200 \,\mathrm{V/m}\) and the plates are separated by 4 cm.  Plot the equipotential lines at 2 V intervals to construct a contour map of the system's electric potential.

Solution

A. Recall that the electric potential energy corresponding to a positive test charge \(q\) placed in the uniform electric field \(\vec{E}\) at a distance \(x\) from the negatively-charged plate is given by

\[ U = qEx \nonumber \]

where \( E = |\vec{E}|\) and the constant term \(U_0\) is set to zero so that \(U = 0\) at the negative plate. The energy diagram is therefore a line with slope \(qE\).

The corresponding electric potential function for the system of oppositely-charged parallel plates is then

\[ V = \frac{U}{q} = Ex \]

This function is also linear in \(x\), but now has a slope \(E\).  The potential energy and potential graphs for this system are shown in Figure \(\PageIndex{3}\)(a) and (b), respectively.  In both graphs, the slope is positive, but they have different values.

B. The potential has traditionally also been visualized in another way called the contour map.  In a contour map, equipotential lines are drawn that show all the points where the potential is a set of constant values, usually at equal potential intervals. In this system, the potential is constant for all the points that are at a fixed distance from the negative plate, namely, a set of lines parallel to the plates at equal spatial intervals. Using \(E = 200\, \mathrm{V/m}\) with a plate separation of 0.04 m means that the potential at the positive plate will be 8 V, as seen in Figure \(\PageIndex{3}\).  The corresponding contour map in shown Figure \(\PageIndex{4}\)(d) using 2 V intervals.

Figure \(\PageIndex{3}\): (a) Electric potential energy diagram for a positive point charge in a uniform electric field. (b) Electric potential diagram of a uniform electric field. (c) Electric potential graph for an electric field of 200 V/m and 4 cm plate separation. (d) Contour map for the system in (c) using equipotential lines at 2 V intervals (Ronald Kumon, CC-BY-4.0)

Exercise \(\PageIndex{3}\)

Suppose the positive test charge in the previous example is removed and then replaced by a negative test charge of equal magnitude but opposite sign.  What are the corresponding (1) electric potential energy graph, (2) electric potential graph, and (3) electric potential contour map for this modified system?

Answer

The electric potential energy of the system with the negative test charge \(−q\) will be

\[ U = −qEx \nonumber , \]

which corresponds to a line with slope \(–qE\), as shown in Figure \(\PageIndex{4}\)(a).  The electric potential will be

\[ V = \frac{U}{−q} = \frac{−qEx}{−q} = Ex , \nonumber \]

which is exactly the same result as the previous example (shown again in Figure \(\PageIndex{4}\)(b), (c)).  In some sense, the whole point of the potential function is to eliminate the effect of the test charge and only show the effect of the source charges in the system.  Because the source charges in this system (the charges in the parallel plate) have not changed as compared to the previous example, the potential should not have changed either.  As a consequence, the contour map will also be the same (Figure \(\PageIndex{4}\)(d)).

Figure \(\PageIndex{4}\): (a) Electric potential energy diagram for a negative point charge in a uniform electric field. (b) Electric potential diagram of a uniform electric field. (c) Electric potential graph for an electric field of 200 V/m and 4 cm plate separation. (d) Contour map for the system in (c) using equipotential lines at 2 V intervals (Ronald Kumon, CC-BY-4.0)

 Conservation of Energy

The total energy of a system is conserved if there is no net addition (or subtraction) due to work or heat transfer. For conservative forces, such as the electrostatic force, conservation of energy states that mechanical energy is a constant.

Mechanical energy is the sum of the kinetic energy and potential energy of a system; that is, \(K + U = \mathrm{constant}\). A loss of \(U\) for a charged particle becomes an increase in its \(K\). Conservation of energy is stated in equation form as

\[K + U = \mathrm{constant} \] or \[K_i + U_i = K_f + U_f\]

where i and f stand for initial and final conditions. As we have found many times before, considering energy can give us insights and facilitate problem solving.

Example \(\PageIndex{4}\): Electrical Potential Energy Converted into Kinetic Energy

Calculate the final speed of a free electron accelerated from rest through a potential difference of 100 V. (Assume that this numerical value is accurate to three significant figures.)

Solution

PLAN

We have a system with only conservative forces. Assuming the electron is accelerated in a vacuum, and neglecting the gravitational force (we will check on this assumption later), all of the electrical potential energy is converted into kinetic energy. We can identify the initial and final forms of energy to be

\(K_i = 0\), \(K_f = \frac{1}{2}mv^2\), \(U_i = qV\), \(U_f = 0\).

SKETCH

When solving problems using conservation of energy, it is helpful to draw figures that show the system in its initial state and then later in the final state, as shown in Figure \(\PageIndex{5}\). Indicate all the relevant parameters in the plot (e.g., position, velocity, potential, etc.)

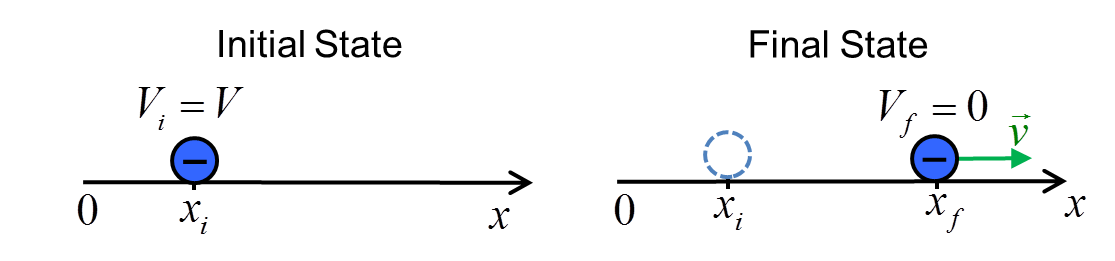

Figure \(\PageIndex{5}\): Initial state (left) and final state (right) of the system of a free electron accelerated from rest through a potential difference. (Ronald Kumon, CC-BY-SA 4.0)

CALCULATE

Conservation of energy states that

\[K_i + U_i = K_f + U_f.\]

Entering the forms identified above, we obtain

\[qV = \dfrac{mv^2}{2}.\]

We solve this for \(v\):

\[v = \sqrt{\dfrac{2qV}{m}}.\]

Entering values for \(q\), \(V\), and \(m\) gives

\[v = \sqrt{\dfrac{2(-1.60 \times 10^{-19}\mathrm{C})(-100 \, \mathrm{J/C})}{9.11 \times 10^{-31} \mathrm{kg}}} = 5.93 \times 10^6 \, \mathrm{m/s}.\]

CHECK

Note that both the charge and the initial voltage are negative, as in Figure \(\PageIndex{2}\). From the discussion of electric charge and electric field, we know that electrostatic forces on small particles are generally very large compared with the gravitational force. The large final speed confirms that the gravitational force is indeed negligible here. The large speed also indicates how easy it is to accelerate electrons with small voltages because of their very small mass. Voltages much higher than the 100 V in this problem are typically used in electron guns. These higher voltages produce electron speeds so great that effects from special relativity must be taken into account and will be discussed elsewhere. That is why we consider a low voltage (accurately) in this example.

Exercise \(\PageIndex{4}\)

How would this example change with a positron? A positron is identical to an electron except the charge is positive.

Answer

It would be going in the opposite direction, with no effect on the calculations as presented.

In general, we suggest the following general problem-solving strategy to follow for problems in electrostatics (non-moving charges).

Problem-Solving Strategy: Electrostatics

PLAN

• Examine the situation to determine if static electricity is involved; this may concern separated stationary charges, the forces among them, and the electric fields they create.
• Identify exactly what needs to be determined in the problem (identify the unknowns). A written list is useful.

SKETCH

• Identify the system of interest and make a sketch of the system. This includes noting the number, locations, and types of charges involved.
• If the electric force is to be considered directly, it may be useful to also draw a free-body diagram.
• Where the problem includes an electric field, sketch an electric field vector diagram or line diagram as needed to show the field.
• If the problem is to be solved using conservation of energy, then draw the initial and final states of the system.

CALCULATE

• Make a list of what is given or can be inferred from the problem as stated (identify the knowns). For example, it is important to distinguish the electric force \(\vec{F}\) from the electric field \(\vec{E}\) or the electric potential energy \(U\) from the electric potential \(V\).
• Problems that require calculation of acceleration or forces can often be most easily approached by first calculating the electric field.
• Problems that involve constant acceleration can use kinematic equations to find positions or velocities of particles.
• Problems that involve non-constant acceleration or electric potential may be more easily approached using conservation of energy.
• Solve the appropriate equation for the quantity to be determined (the unknown).

CHECK

• Examine the answer to see if it is reasonable: Does it make sense? Are units correct and the numbers involved reasonable (e.g., speeds should always be less than the speed of light)?  Does the result match your expectations for limiting cases?
