3.3: Examples

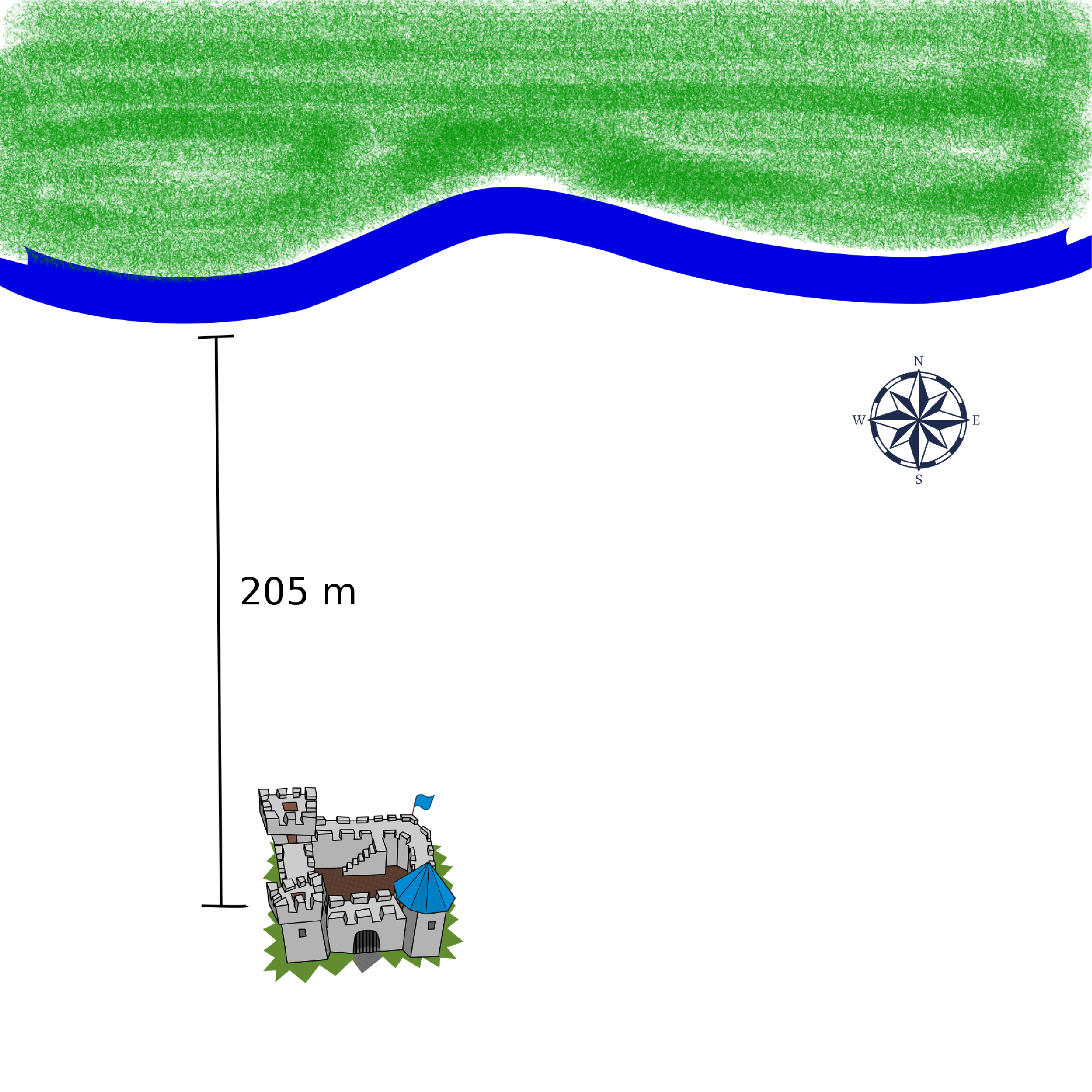

You have escaped from your cell in a dungeon underneath the castle shown in the figure. If you can run through the tunnels and find an exit on the other side of the river (30 m wide and 205 m north, as shown), you'll escape from the evil wizard!
- First you take a tunnel 180 m long traveling 30\(^\circ\) north of east.
- Then you make a right angle turn to the left, and travel another 180 m.
At the end of this tunnel, you see a hatch in the ceiling. Will you escape to the other side of the river if you take this hatch?
Solve the following two problems using vector components.
- Sandra drives her car directly North for 2.0 km, and then turns 20 degrees to the East and drives another 4.0 km. Find the vector (magnitude and direction) from her initial location to her final location.
- Joe and Max shake hands and say goodbye. Joe walks east 1.00 km to a coffee shop. Max flags a cab and rides 5.00 km in a direction 30 degrees north of east to a bookstore. Find the vector (magnitude and direction) from the coffee shop (Joe) to the bookstore (Max).
Example \(\PageIndex{3}\): Analytical Computation of a Resultant
Three displacement vectors \(\vec{A}\), \(\vec{B}\), and \(\vec{C}\) in a plane are specified by their magnitudes A = 10.0, B = 7.0, and C = 8.0, respectively, and by their respective direction angles with the horizontal direction \(\alpha\) = 35°, \(\beta\) = −110°, and \(\gamma\) = 30°. The physical units of the magnitudes are centimeters. Resolve the vectors to their scalar components and find the following vector sums:
- \(\vec{R}\) = \(\vec{A}\) + \(\vec{B}\) + \(\vec{C}\),
- \(\vec{D}\) = \(\vec{A}\) − \(\vec{B}\), and
- \(\vec{S}\) = \(\vec{A}\) − 3 \(\vec{B}\) + \(\vec{C}\).
First, we use Equation 3.2.13 to find the scalar components of each vector and then we express each vector in its vector component form given by \(\overrightarrow{\mathbf{A}}=A_{x} \hat{\mathbf{i}}+A_{y} \hat{\mathbf{j}}\). Then, we use analytical methods of vector algebra to find the resultants.
SolutionWe resolve the given vectors to their scalar components:
\[ \begin{cases} A_{x} = A \cos \alpha = (10.0\; cm) \cos {35^{o}} = 8.19\; cm \\ A_{y} = A \sin \alpha = (10.0\; cm) \sin{35^{o}} = 5.73\; cm \end{cases}\]
\[ \begin{cases} B_{x} = B \cos \beta = (7.0\; cm) \cos (-110^{o}) = -2.39\; cm \\ B_{y} = B \sin \beta= (7.0\; cm) \sin (-110^{o}) = -6.58\; cm \end{cases}\]
\[ \begin{cases} C_{x} = C \cos \gamma= (8.0\; cm) \cos (30^{o}) = 6.93\; cm \\ C_{y} = C \sin \gamma= (8.0\; cm) \sin(30^{o}) = 4.00\; cm \end{cases}\]
For (a) we may substitute directly into the given expression to find the scalar components of the resultant:
\[ \begin{cases} R_{x} = A_{x} + B_{x} + C_{x} = 8.19\; cm - 2.39\; cm + 6.93\; cm = 12.73\; cm \\ R_{y} = A_{y} + B_{y} + C_{y} = 5.73\; cm - 6.58\; cm + 4.00\; cm = 3.15\; cm \end{cases}\]
Therefore, the resultant vector is \(\vec{R} = R_{x} \hat{i} + R_{y} \hat{j} = (12.7 \hat{i} + 3.1 \hat{j})\)cm. For (b), we may want to write the vector difference as
\[\vec{D} = \vec{A} - \vec{B} = (A_{x} \hat{i} + A_{y} \hat{j}) - (B_{x} \hat{i} + B_{y} \hat{j}) = (A_{x} - B_{x}) \hat{i} + (A_{y} - B_{y}) \hat{j} \ldotp\]
Hence the difference vector is \(\vec{D} = D_{x} \hat{i} + D_{y} \hat{j} = (10.6 \hat{i} + 12.3 \hat{j})\)cm.
For (c), we can write vector \(\vec{S}\) in the following explicit form:
\[ \vec{S} = \vec{A} - 3 \vec{B} + \vec{C} = (A_{x} \hat{i} + A_{y} \hat{j}) - 3(B_{x} \hat{i} + B_{y} \hat{j}) + (C_{x} \hat{i} + C_{y} \hat{j}) = (A_{x} - 3 B_{x} + C_{x}) \hat{i} + (A_{y} - 3 B_{y} + C_{y}) \hat{j} \ldotp\]
Then, the scalar components of \(\vec{S}\) are
\[ \begin{cases} S_{x} = A_{x} - 3B_{x} + C_{x} = 8.19\; cm - 3(-2.39\; cm) + 6.93\; cm = 22.29\; cm \\ S_{y} = A_{y} - 3B_{y} + C_{y} = 5.73\; cm -3(-6.58\; cm) + 4.00\; cm = 29.47\; cm \end{cases}\]
The vector is \(\vec{S} = S_{x} \hat{i} + S_{y} \hat{j} = (22.3 \hat{i} + 29.5 \hat{j})\)cm.
SignificanceHaving found the vector components, we can illustrate the vectors by graphing or we can compute magnitudes and direction angles, as shown in Figure \(\PageIndex{1}\).
Exercise \(\PageIndex{4}\)
Three displacement vectors \(\vec{A}\), \(\vec{B}\), and \(\vec{F}\) are specified by their magnitudes A = 10.00, B = 7.00, and F = 20.00, respectively, and by their respective direction angles with the horizontal direction \(\alpha\) = 35°, \(\beta\) = −110°, and \(\varphi\) = 110°. The physical units of the magnitudes are centimeters. Use the analytical method to find vector \(\vec{F}\) = \(\vec{A}\) + 2 \(\vec{B}\) − \(\vec{F}\). Verify that G = 28.15 cm and that \(\theta_{G}\) = −68.65°.
Example \(\PageIndex{5}\): The Tug-of-War Game
Four dogs named Astro, Balto, Clifford, and Dug play a tug-of-war game with a toy (Figure \(\PageIndex{2}\)). Astro pulls on the toy in direction \(\alpha\) = 55° south of east, Balto pulls in direction \(\beta\) = 60° east of north, and Clifford pulls in direction \(\gamma\) = 55° west of north. Astro pulls strongly with 160.0 units of force (N), which we abbreviate as A = 160.0 N. Balto pulls even stronger than Astro with a force of magnitude B = 200.0 N, and Clifford pulls with a force of magnitude C = 140.0 N. When Dug pulls on the toy in such a way that his force balances out the resultant of the other three forces, the toy does not move in any direction. With how big a force and in what direction must Dug pull on the toy for this to happen?
Strategy
We assume that east is the direction of the positive x-axis and north is the direction of the positive y-axis. As in Example \(\PageIndex{1}\), we have to resolve the three given forces — \(\vec{A}\) (the pull from Astro), \(\vec{B}\) (the pull from Balto), and \(\vec{C}\) (the pull from Clifford)—into their scalar components and then find the scalar components of the resultant vector \(\vec{R}\) = \(\vec{A}\) + \(\vec{B}\) + \(\vec{C}\). When the pulling force \(\vec{D}\) from Dug balances out this resultant, the sum of \(\vec{D}\) and \(\vec{R}\) must give the null vector \(\vec{D}\) + \(\vec{R}\) = \(\vec{0}\). This means that \(\vec{D}\) = \(- \vec{R}\) so the pull from Dug must be antiparallel to \(\vec{R}\).
Solution
The direction angles are \(\theta_{A}\) = \(− \alpha\) = −55°, \(\theta_{B}\) = 90° − \(\beta\) = 30°, and \(\theta_{C}\) = 90° + \(\gamma\) = 145°, and substituting them into Equation 2.4.13 gives the scalar components of the three given forces:
\[ \begin{cases} A_{x} = A \cos \theta_{A} = (160.0\; N) \cos (-55^{o}) = + 91.8\; N \\ A_{y} = A \sin \theta_{A} = (160.0\; N) \sin (-55^{o}) = -131.1\; N \end{cases}\]
\[ \begin{cases} B_{x} = B \cos \theta_{B} = (200.0\; N) \cos 30^{o} = + 173.2\; N \\ B_{y} = B \sin \theta_{B} = (200.0\; N) \sin 30^{o} = + 100.0\; N \end{cases}\]
\[ \begin{cases} C_{x} = C \cos \theta_{C} = (140.0\; N) \cos 145^{o} = -114.7\; N \\ C_{y} = C \sin \theta_{C} = (140.0\; N) \sin 145^{o} = + 80.3\; N \end{cases}\]
Now we compute scalar components of the resultant vector \(\vec{R} = \vec{A} + \vec{B} + \vec{C}\):
\[ \begin{cases} R_{x} = A_{x} + B_{x} + C_{x} = + 91.8\; N+ 173.2\; N- 114.7\; N = +150.3 \; N\\ R_{y} = A_{y} + B_{y} + C_{y} = -131.1\; N + 100.0\; N + 80.3\; N= +49.2\; N\end{cases}\]
The antiparallel vector to the resultant \(\vec{R}\) is
\[\vec{D} = -\vec{R} = -R_{x} \hat{i} - R_{y} \hat{j} = (-150.3 \hat{i} - 49.2 \hat{j}) N \ldotp\]
The magnitude of Dug's pulling force is
\[D = \sqrt{D_{x}^{2} + D_{y}^{2}} = \sqrt{(-150.3)^{2} + (-49.2)^{2}} N = 158.1\; N \ldotp\]
The direction of Dug's pulling force is
\[\theta = \tan^{-1} \left(\dfrac{D_{y}}{D_{x}}\right) = \tan^{-1} \left(\dfrac{-49.2\; N}{-150.3\; N}\right) = \tan^{-1} \left(\dfrac{49.2}{150.3}\right) = 18.1^{o}\ldotp\]
Dug pulls in the direction 18.1° south of west because both components are negative, which means the pull vector lies in the third quadrant.
Exercise \(\PageIndex{6}\)
Suppose that Balto in Example \(\PageIndex{2}\) leaves the game to attend to more important matters, but Astro, Clifford, and Dug continue playing. Astro and Clifford’s pull on the toy does not change, but Dug runs around and bites on the toy in a different place. With how big a force and in what direction must Dug pull on the toy now to balance out the combined pulls from Clifford and Astro? Illustrate this situation by drawing a vector diagram indicating all forces involved.
Example \(\PageIndex{7}\): Vector Algebra
Find the magnitude of the vector \(\vec{C}\) that satisfies the equation 2 \(\vec{A}\) − 6 \(\vec{B}\) + 3 \(\vec{C}\) = 2 \(\hat{j}\), \(\vec{A}\) = \(\hat{i}\) − 2\(\hat{k}\) and \(\vec{B}\) = − \(\hat{j}\) + \(\frac{\hat{k}}{2}\) .
StrategyWe first solve the given equation for the unknown vector \(\vec{C}\). Then we substitute \(\vec{A}\) and \(\vec{B}\); group the terms along each of the three directions \(\hat{i}\), \(\hat{j}\), and \(\hat{k}\); and identify the scalar components C x , C y , and C z . Finally, we substitute into Equation 3.3.6 to find magnitude C.
Solution\[\begin{split} 2 \vec{A} - 6 \vec{B} +& 3 \vec{C} = 2 \hat{j}\\ & 3 \vec{C} = 2 \hat{j} - 2 \vec{A} + 6 \vec{B} \\ &\vec{C} = \frac{2}{3} \hat{j} - \frac{2}{3} \vec{A} + 2 \vec{B}\\ & \quad = \frac{2}{3} \hat{j} - \frac{2}{3} (\hat{i} - 2\hat{k}) + 2 \big(- \hat{j} + \frac{\hat{k}}{2}\big)\\ & \quad = \frac{2}{3} \hat{j} - \frac{2}{3} \hat{i} + \frac{4}{3} \hat{k} - 2 \hat{j} + \hat{k}\\ & \quad = -\frac{2}{3} \hat{i} + \big(\frac{2}{3} - 2 \big)\hat{j} + \big(\frac{4}{3}\ + 1 \big)\hat{k}\\ & \quad = -\frac{2}{3} \hat{i} - \frac{4}{3} \hat{j} + \frac{7}{3} \hat{k} \end{split}\]
The components are C x = \(-\frac{2}{3}\), C y = \(-\frac{4}{3}\), and C z = \(\frac{7}{3}\), and substituting into Equation 3.3.6 gives
\[C = \sqrt{C_{x}^{2} + C_{y}^{2} + C_{z}^{2}} = \sqrt{\left(-\dfrac{2}{3}\right)^{2} + \left(-\dfrac{4}{3}\right)^{2} + \left(\dfrac{7}{3}\right)^{2}} = \sqrt{\frac{23}{3}} \ldotp\]
Example \(\PageIndex{8}\): Displacement of a Skier
Starting at a ski lodge, a cross-country skier goes 5.0 km north, then 3.0 km west, and finally 4.0 km southwest before taking a rest. Find his total displacement vector relative to the lodge when he is at the rest point. How far and in what direction must he ski from the rest point to return directly to the lodge?
StrategyWe assume a rectangular coordinate system with the origin at the ski lodge and with the unit vector \(\hat{i}\) pointing east and the unit vector \(\hat{j}\) pointing north. There are three displacements: \(\vec{D}_{1}\), \(\vec{D}_{2}\), and \(\vec{D}_{3}\). We identify their magnitudes as D 1 = 5.0 km , D 2 = 3.0 km , and D 3 = 4.0 km . We identify their directions are the angles \(\theta_{1}\) = 90°, \(\theta_{2}\) = 180°, and \(\theta_{3}\) = 180° + 45° = 225°. We resolve each displacement vector to its scalar components and substitute the components into Equation 3.2.13 to obtain the scalar components of the resultant displacement \(\vec{D}\) from the lodge to the rest point. On the way back from the rest point to the lodge, the displacement is \(\vec{B}\) = − \(\vec{D}\). Finally, we find the magnitude and direction of \(\vec{B}\).
SolutionScalar components of the displacement vectors are
\[ \begin{cases} D_{1x} = D_{1} \cos \theta_{1} = (5.0\; km) \cos 90^{o} = 0 \\ D_{1y} = D_{1} \sin \theta_{1} = (5.0\; km) \sin 90^{o} = 5.0\; km \end{cases}\]
\[ \begin{cases} D_{2x} = D_{2} \cos \theta_{2} = (3.0\; km) \cos 180^{o} = -3.0 \;km\\ D_{2y} = D_{2} \sin \theta_{2} = (3.0\; km) \sin 180^{o} = 0 \end{cases}\]
\[ \begin{cases} D_{3x} = D_{3} \cos \theta_{3} = (4.0\; km) \cos 225^{o} = -2.8\; km \\ D_{3y} = D_{3} \sin \theta_{3} = (4.0\; km) \sin 225^{o} = -2.8\; km \end{cases}\]
Scalar components of the net displacement vector are
\[ \begin{cases} D_{x} = D_{1x} + D_{2x} + D_{3x} = (0 - 3.0 - 2.8)km = -5.8\; km \\ D_{y} = D_{1y} + D_{2y} + D_{3y} = (5.0 + 0 - 2.8)km = + 2.2\; km \end{cases}\]
Hence, the skier’s net displacement vector is \(\vec{D}\) = D x \(\hat{i}\) + D y \(\hat{j}\) = (−5.8 \(\hat{i}\) + 2.2 \(\hat{j}\))km . On the way back to the lodge, his displacement is \(\vec{B}\) = − \(\vec{D}\) = −(−5.8 \(\hat{i}\)+ 2.2 \(\hat{j}\))km = (5.8 \(\hat{i}\) − 2.2 \(\hat{j}\))km. Its magnitude is B = \(\sqrt{B_{x}^{2} + B_{y}^{2}}\) = \(\sqrt{(5.8)^{2} + (−2.2)^{2}}\) km = 6.2 km and its direction angle is \(\theta\)= tan −1 \(\left(\dfrac{−2.2}{5.8}\right)\) = −20.8°. Therefore, to return to the lodge, he must go 6.2 km in a direction about 21° south of east.
Significance
Notice that no figure is needed to solve this problem by the analytical method. Figures are required when using a graphical method; however, we can check if our solution makes sense by sketching it, which is a useful final step in solving any vector problem.
Example \(\PageIndex{9}\): Displacement of a Jogger
A jogger runs up a flight of 200 identical steps to the top of a hill and then runs along the top of the hill 50.0 m before he stops at a drinking fountain (Figure \(\PageIndex{3}\)). His displacement vector from point A at the bottom of the steps to point B at the fountain is \(\vec{D}_{AB}\) = (−90.0 \(\hat{i}\) + 30.0 \(\hat{j}\))m. What is the height and width of each step in the flight? What is the actual distance the jogger covers? If he makes a loop and returns to point A, what is his net displacement vector?
Strategy
The displacement vector \(\vec{D}_{AB}\) is the vector sum of the jogger’s displacement vector \(\vec{D}_{AT}\) along the stairs (from point A at the bottom of the stairs to point T at the top of the stairs) and his displacement vector \(\vec{D}_{RB}\) on the top of the hill (from point T at the top of the stairs to the fountain at point B). We must find the horizontal and the vertical components of \(\vec{D}_{TB}\). If each step has width w and height h, the horizontal component of \(\vec{D}_{TB}\) must have a length of 200w and the vertical component must have a length of 200h. The actual distance the jogger covers is the sum of the distance he runs up the stairs and the distance of 50.0 m that he runs along the top of the hill.
Solution
In the coordinate system indicated in Figure \(\PageIndex{3}\), the jogger’s displacement vector on the top of the hill is \(\vec{D}_{RB}\) = (−50.0 m) \(\hat{i}\). His net displacement vector is
\[\vec{D}_{AB} = \vec{D}_{AT} + \vec{D}_{TB} \ldotp \nonumber\]
Therefore, his displacement vector \(\vec{D}_{TB}\) along the stairs is
\[\begin{split} \vec{D}_{AT}& = \vec{D}_{AB} - \vec{D}_{TB} = (-90.0 \hat{i} + 30.0 \hat{j})m - (-50.0 m)\hat{i}) = [(-90.0 50.0) \hat{i} + 30.0 \hat{j})]m \\ & = (-40.0 \hat{i} + 30.0 \hat{j})m \ldotp \end{split}\]
Its scalar components are D ATx = −40.0 m and D ATy = 30.0 m. Therefore, we must have
\[200 w=|-40.0| \mathrm{m} \text { and } 200 h=30.0 \: \mathrm{m} \ldotp \nonumber\]
Hence, the step width is w = \(\frac{40.0\; m}{200}\) = 0.2 m = 20 cm, and the step height is w = \(\frac{30.0\; m}{200}\) = 0.15 m = 15 cm. The distance that the jogger covers along the stairs is
\[\vec{D}_{AT} = \sqrt{\vec{D}_{ATx}^{2} + \vec{D}_{ATy}^{2}} = \sqrt{(-40.0)^{2} + (30.0)^{2}}m = 50.0\; m \ldotp \nonumber\]
Thus, the actual distance he runs is D AT + D TB = 50.0 m + 50.0 m = 100.0 m. When he makes a loop and comes back from the fountain to his initial position at point A, the total distance he covers is twice this distance,or 200.0 m. However, his net displacement vector is zero, because when his final position is the same as his initial position, the scalar components of his net displacement vector are zero.
In many physical situations, we often need to know the direction of a vector. For example, we may want to know the direction of a magnetic field vector at some point or the direction of motion of an object. We have already said direction is given by a unit vector, which is a dimensionless entity—that is, it has no physical units associated with it. When the vector in question lies along one of the axes in a Cartesian system of coordinates, the answer is simple, because then its unit vector of direction is either parallel or antiparallel to the direction of the unit vector of an axis. For example, the direction of vector \(\vec{d}\) = -5 m \(\hat{i}\) is unit vector \(\vec{d}\) = -\(\hat{i}\). The general rule of finding the unit vector \(\vec{V}\) of direction for any vector \(\vec{V}\) is to divide it by its magnitude V :
\[\widehat{\mathbf{V}}=\frac{\overrightarrow{\mathbf{V}}}{V} \label{2.26} \cdot \]
We see from this expression that the unit vector of direction is indeed dimensionless because the numerator and the denominator in Equation \ref{2.26} have the same physical unit. In this way, Equation \ref{2.26} allows us to express the unit vector of direction in terms of unit vectors of the axes. The following example illustrates this principle.
Example \(\PageIndex{10}\): The Unit Vector of Direction
If the velocity vector of a military convoy is \(\vec{v}\) = (4.000 \(\hat{i}\) + 3.000 \(\hat{j}\) + 0.100 \(\hat{k}\))km/h, what is the unit vector of its direction of motion.
StrategyThe unit vector of the convoy’s direction of motion is the unit vector \(\hat{v}\) that is parallel to the velocity vector. The unit vector is obtained by dividing a vector by its magnitude, in accordance with Equation \ref{2.26}.
SolutionThe magnitude of the vector \(\vec{v}\) is
\[v = \sqrt{v_{x}^{2} + v_{y}^{2} + v_{z}^{2}} = \sqrt{4.000^{2} + 3.000^{2} + 0.100^{2}}km/h = 5.001\; km/h \ldotp \nonumber\]
To obtain the unit vector \(\hat{v}\), divide \(\vec{v}\) by its magnitude:
\[\begin{split} \hat{v}& = \frac{\vec{v}}{v} = \frac{(4.000 \hat{i} + 3.00 \hat{j} + 0.100 \hat{k})km/h}{5.001\; km/h} \\ & = \frac{(4.000 \hat{i} + 3.000 \hat{j} + 0.1100 \hat{k})}{5.001} \\ & = \frac{4.000}{5.001} \hat{i} + \frac{3.000}{5.001} \hat{j} + \frac{0.100}{5.001} \hat{k} \\ & = (79.98 \hat{i} + 59.99 \hat{j} + 2.00 \hat{k}) \times 10^{-2} \ldotp \end{split}\]
SignificanceNote that when using the analytical method with a calculator, it is advisable to carry out your calculations to at least three decimal places and then round off the final answer to the required number of significant figures, which is the way we performed calculations in this example. If you round off your partial answer too early, you risk your final answer having a huge numerical error, and it may be far off from the exact answer or from a value measured in an experiment.
Exercise \(\PageIndex{11}\)
Verify that vector \(\hat{v}\) obtained in Example \(\PageIndex{3}\) is indeed a unit vector by computing its magnitude. If the convoy in Example 2.6.1 was moving across a desert flatland—that is, if the third component of its velocity was zero—what is the unit vector of its direction of motion? Which geographic direction does it represent?
