A mistake that crops up in the calculation of moments of inertia, involves the Parallel Axis Theorem. The mistake is to interchange the moment of inertia of the axis through the center of mass, with the one parallel to that, when applying the Parallel Axis Theorem. Recognizing that the subscript “CM” in the parallel axis theorem stands for “center of mass” will help one avoid this mistake. Also, a check on the answer, to make sure that the value of the moment of inertia with respect to the axis through the center of mass is smaller than the other moment of inertia, will catch the mistake.

## Center of Mass

Consider two particles, having one and the same mass m, each of which is at a different position on the x axis of a Cartesian coordinate system.

Common sense tells you that the average position of the material making up the two particles is midway between the two particles. Common sense is right. We give the name “center of mass” to the average position of the material making up a distribution, and the center of mass of a pair of same-mass particles is indeed midway between the two particles.

How about if one of the particles is more massive than the other? One would expect the center of mass to be closer to the more massive particle, and again, one would be right. To determine the position of the center of mass of the distribution of matter in such a case, we compute a weighted sum of the positions of the particles in the distribution, where the weighting factor for a given particle is that fraction, of the total mass, that the particle’s own mass is. Thus, for two particles on the $$x$$ axis, one of mass $$m_1$$, at $$x_1$$, and the other of mass $$m_2$$, at $$x_2$$,

the position $$\bar{x}$$ of the center of mass is given by

$\bar{x}=\frac{m_1}{m_1+m_2} x_1+ \frac{m_2}{m_1+m_2} x_2 \label{22-1}$

Note that each weighting factor is a proper fraction and that the sum of the weighting factors is always 1. Also note that if, for instance, $$m_1$$ is greater than $$m_2$$, then the position $$x_1$$ of particle 1 will count more in the sum, thus ensuring that the center of mass is found to be closer to the more massive particle (as we know it must be). Further note that if $$m_1=m_2$$, each weighting factor is $$\frac{1}{2}$$, as is evident when we substitute m for both $$m_1$$ and $$m_2$$ in Equation $$\ref{22-1}$$:

$\bar{x}=\dfrac{m}{m+m} x_1+ \frac{m}{m+m} x_2 \nonumber$

$\bar{x}=\dfrac{1}{2}x_1+\frac{1}{2}x_2 \nonumber$

$\bar{x}=\dfrac{x_1+x_2}{2} \nonumber$

The center of mass is found to be midway between the two particles, right where common sense tells us it has to be.

## The Center of Mass of a Thin Rod

Quite often, when the finding of the position of the center of mass of a distribution of particles is called for, the distribution of particles is the set of particles making up a rigid body. The easiest rigid body for which to calculate the center of mass is the thin rod because it extends in only one dimension. (Here, we discuss an ideal thin rod. A physical thin rod must have some nonzero diameter. The ideal thin rod, however, is a good approximation to the physical thin rod as long as the diameter of the rod is small compared to its length.)

In the simplest case, the calculation of the position of the center of mass is trivial. The simplest case involves a uniform thin rod. A uniform thin rod is one for which the linear mass density $$\mu$$, the mass-per-length of the rod, has one and the same value at all points on the rod. The center of mass of a uniform rod is at the center of the rod. So, for instance, the center of mass of a uniform rod that extends along the x axis from $$x=0$$ to $$x=L$$ is at (L/2, 0).

The linear mass density $$\mu$$, typically called linear density when the context is clear, is a measure of how closely packed the elementary particles making up the rod are. Where the linear density is high, the particles are close together.

To picture what is meant by a non-uniform rod, a rod whose linear density is a function of position, imagine a thin rod made of an alloy consisting of lead and aluminum. Further imagine that the percentage of lead in the rod varies smoothly from 0% at one end of the rod to 100% at the other. The linear density of such a rod would be a function of the position along the length of the rod. A one-millimeter segment of the rod at one position would have a different mass than that of a one-millimeter segment of the rod at a different position.

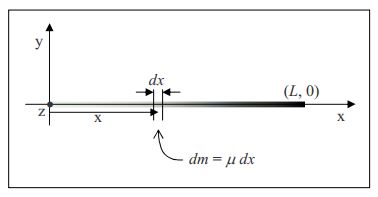

People with some exposure to calculus have an easier time understanding what linear density is than calculus-deprived individuals do because linear density is just the ratio of the amount of mass in a rod segment to the length of the segment, in the limit as the length of the segment goes to zero. Consider a rod that extends from $$0$$ to $$L$$ along the $$x$$ axis. Now suppose that $$m_s(x)$$ is the mass of that segment of the rod extending from $$0$$ to $$x$$ where $$x\ge0$$ but $$x<L$$. Then, the linear density of the rod at any point x along the rod, is just $$\frac{dm_s}{dx}$$ evaluated at the value of $$x$$ in question.

Now that you have a good idea of what we mean by linear mass density, we are going to illustrate how one determines the position of the center of mass of a non-uniform thin rod by means of an example.

## Moment of Inertia—a.k.a. Rotational Inertia

You already know that the moment of inertia of a rigid object, with respect to a specified axis of rotation, depends on the mass of that object, and how that mass is distributed relative to the axis of rotation. In fact, you know that if the mass is packed in close to the axis of rotation, the object will have a smaller moment of inertia than it would if the same mass was more spread out relative to the axis of rotation. Let’s quantify these ideas. (Quantify, in this context, means to put into equation form.)

We start by constructing, in our minds, an idealized object for which the mass is all concentrated at a single location which is not on the axis of rotation: Imagine a massless disk rotating with angular velocity w about an axis through the center of the disk and perpendicular to its faces. Let there be a particle of mass m embedded in the disk at a distance $$r$$ from the axis of rotation. Here’s what it looks like from a viewpoint on the axis of rotation, some distance away from the disk:

where the axis of rotation is marked with an $$O$$. Because the disk is massless, we call the moment of inertia of the construction, the moment of inertia of a particle, with respect to rotation about an axis from which the particle is a distance $$r$$.

Knowing that the velocity of the particle can be expressed as $$v=r\omega$$ you can show yourself how $$I$$ must be defined in order for the kinetic energy expression $$K=\frac{1}{2} I \omega^2$$ for the object, viewed as a spinning rigid body, to be the same as the kinetic energy expression $$K=\frac{1}{2} m v^2$$ for the particle moving through space in a circle. Either point of view is valid so both viewpoints must yield the same kinetic energy. Please go ahead and derive what $$I$$ must be and then come back and read the derivation below.

Here is the derivation:

Given that $$K=\frac{1}{2} m v^2$$, we replace $$v$$ with $$r\omega$$.

This gives $$K=\frac{1}{2} m (r\omega)^2$$

which can be written as

$K=\frac{1}{2} (mr^2) \omega^2 \nonumber$

For this to be equivalent to

$K=\frac{1}{2} I \omega^2 \nonumber$

we must have

$I=mr^2 \label{22-5}$

This is our result for the moment of inertia of a particle of mass $$m$$, with respect to an axis of rotation from which the particle is a distance $$r$$.

Now suppose we have two particles embedded in our massless disk, one of mass $$m_1$$ at a distance $$r_1$$ from the axis of rotation and another of mass $$m_2$$ at a distance $$r_2$$ from the axis of rotation.

The moment of inertia of the first one by itself would be

$I_1=m_1 r_1^2 \nonumber$

and the moment of inertia of the second particle by itself would be

$I_2=m_2 r_2^2 \nonumber$

The total moment of inertia of the two particles embedded in the massless disk is simply the sum of the two individual moments of inertial.

$I=I_1+I_2 \nonumber$

$I=m_1 r_1^2+m_2 r_2^2 \nonumber$

This concept can be extended to include any number of particles. For each additional particle, one simply includes another $$m_i r_i^2$$ term in the sum where $$m_i$$ is the mass of the additional particle and $$r_i$$ is the distance that the additional particle is from the axis of rotation. In the case of a rigid object, we subdivide the object up into an infinite set of infinitesimal mass elements $$dm$$. Each mass element contributes an amount of moment of inertia

$dI=r^2dm \label{22-6}$

to the moment of inertia of the object, where $$r$$ is the distance that the particular mass element is from the axis of rotation.

## The Parallel Axis Theorem

We state, without proof , the parallel axis theorem:

$I=I_{cm}+md^2 \label{22-7}$

in which:

• $$I$$ is the moment of inertia of an object with respect to an axis from which the center of mass of the object is a distance $$d$$.
• $$I_{cm}$$ is the moment of inertia of the object with respect to an axis that is parallel to the first axis and passes through the center of mass.
• $$m$$ is the mass of the object
• $$d$$ is the distance between the two axes.

The parallel axis theorem relates the moment of inertia $$I_{CM}$$ of an object, with respect to an axis through the center of mass of the object, to the moment of inertia I of the same object, with respect to an axis that is parallel to the axis through the center of mass and is at a distance d from the axis through the center of mass.

A conceptual statement made by the parallel axis theorem is one that you probably could have arrived at by means of common sense, namely that the moment of inertia of an object with respect to an axis through the center of mass is smaller than the moment of inertia about any axis parallel to that one. As you know, the closer the mass is “packed” to the axis of rotation, the smaller the moment of inertia; and; for a given object, per definition of the center of mass, the mass is packed most closely to the axis of rotation when the axis of rotation passes through the center of mass.

##### Find the moment of inertia of the rod from examples $$\ref{22-1}$$ and $$\ref{22-2}$$, with respect to an axis that is perpendicular to the rod and passes through the center of mass of the rod. Solution Recall that the rod in question extends along the $$x$$ axis from $$x=0$$ to $$x=L$$ with $$L=0.890 m$$ and that the rod has a linear density given by $$\mu=bL^2$$ with $$b=0.650 \frac{kg}{m^3} x^2$$. The axis in question can be chosen to be one that is parallel to the z axis, the axis about which, in solving example $$\ref{22-2}$$, we found the moment of inertia to be $$I=0.0726kg \cdot m^2$$. In solving example $$\ref{22-1}$$ we found the mass of the rod to be $$m=0.1527 kg$$ and the center of mass of the rod to be at a distance $$d=0.668 m$$ away from the z axis. Here we present the solution to the problem: $I=I_{cm}+md^2 \nonumber$ $I_{cm}=I-md^2 \nonumber$ $I_{cm}=0.0726kg\cdot m^2-0.1527kg (0.668m)^2 \nonumber$ $I_{cm}=0.0047 kg\cdot m^2 \nonumber$
